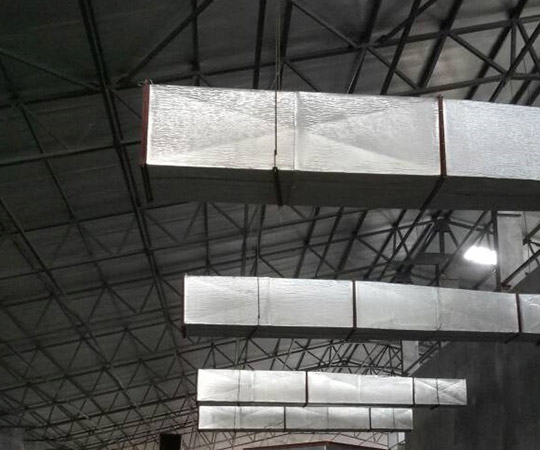

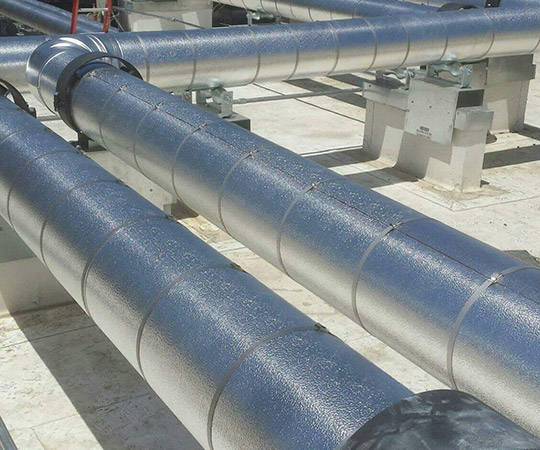

HVAC Duct Insulation
HVAC Duct Insulation

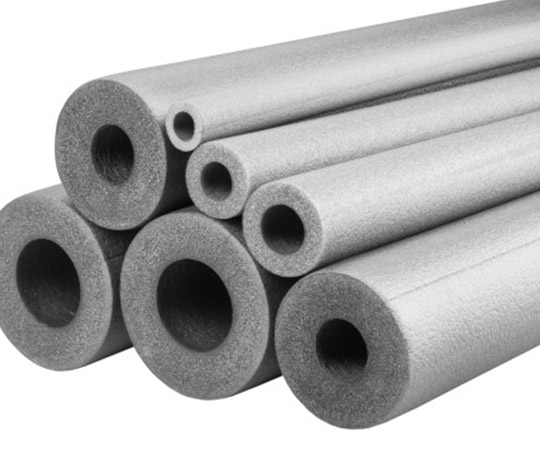

HVAC Tube Insulation
Cold Storage Insulation

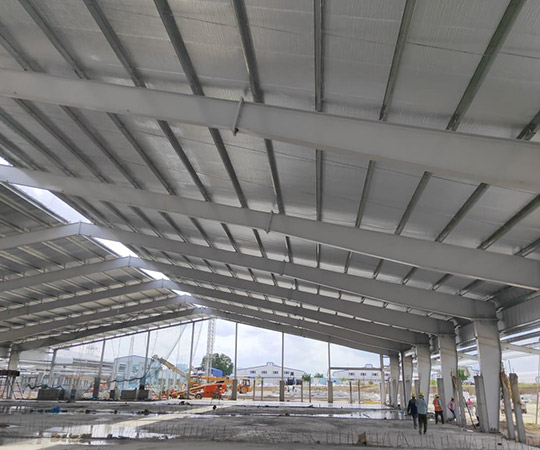

Ware House Insulation
Sports & Packaging
Sports & Packaging
Sports & Packaging
Thickness : 2mm to as per requirement
Width: 1200mm
Lengh: Roll/Sheet
Density: 33 +- 3 kg/m3
Color: as per requirement
Note:
1. Available in various thicknesses and width as per customer requirement.
2. Customized density available as per your requirement
3. Material available as a (FR) Fire Retardant as per BS-476 Part 6 & Part 7 respectively
4. Available with various factory applied lamination such as MET PET film, Aluminum Foil One Side & Both Side.
5. Available with adhesive release paper
Property | THERMbarrier Typical Values | Test Method | ||
---|---|---|---|---|
Material description | Fire retardant, closed cell, chemically crosslinked polyethylene | |||
Material form | Rolls, sheets and tubing | |||
Application | Thermal & Acoustic Insulation | |||
Area of applications | A/c Humidification ducts, Spandrel insulation, Underdeck, Hot & cold water pipelines & acoustic flooring | |||
Operating temperature | -40° C to + 115° C | |||
Thermal stability | Less than 5 % shrinkage at 90° C for 24 hours | |||
Colour | Grey, Natural, (Customised upon customer request) | |||
Nominal density (Kg/m3) | 33 ± 3kg/m3(Customised upon customer request) | BS 4370 Part 1 | ||
Thermal conductivity (W/m°K) | Mean Temperature (°C) | W/m°k | K Cal/hr m°c | IS:3346 / 1980 |
0°C | 0.0318 | 0.0273 | ||
23° C | 0.0328 | 0.0282 | ||
46° C | 0.0383 | 0.0329 | ||
Water absorption | <1.2 % | ASTM D 1056-98 | ||
Water vapour permeance (28 days) | <6x10-3 ng | ASTM E-96 | ||
Water vapour transmission | ||||
(7 Days) | Negligible | |||
(28 Days) | <1100 μg / m2s | |||
Water vapour resistance factor (μ) | Plain | >11000 | DIN 52615 | |
Aluminum foil face one side | > 14000 | |||
2 Tensile strength (N/m2) | Min. 25 | BS 4370 Part 2 | ||
Dimensional stability | No visible changes observed | BS 4370 Part 1 | ||
RH-60%, temp 35° C for 24 hrs. | ||||
Volume percentage of closed cell | >90% | BS 4370 Part 2 | ||
Oxygen index, % | 29 - 34 | ASTM D 2863 | ||
Fire characteristic | a) Surface spread of flame | Class 1 | BS 476 Part 7 | |
(For both plain and foil faced material) | ||||
b) Fire propagation | Class 0 | BS 476 Part 6 | ||
(for aluminium foil faced material only) | ||||
Resistance to chemicals | No effect | ASTM C 543 | ||
(for both mild acidic & alkaline) | ||||
Sound transmission class | 40db | IS:9301 / ISO 140 /ASTM E 413 | ||
(9 MM THERMbarrier laminated with 12 mm gypsum board) |
